Key features
- 1 1/4" headset bearing for oversized systems
- 45/45° angle for standard fit
- 8 mm thickness for increased rigidity
- Sealed against water and contaminants
- Smooth rotation and long lifespan
Description

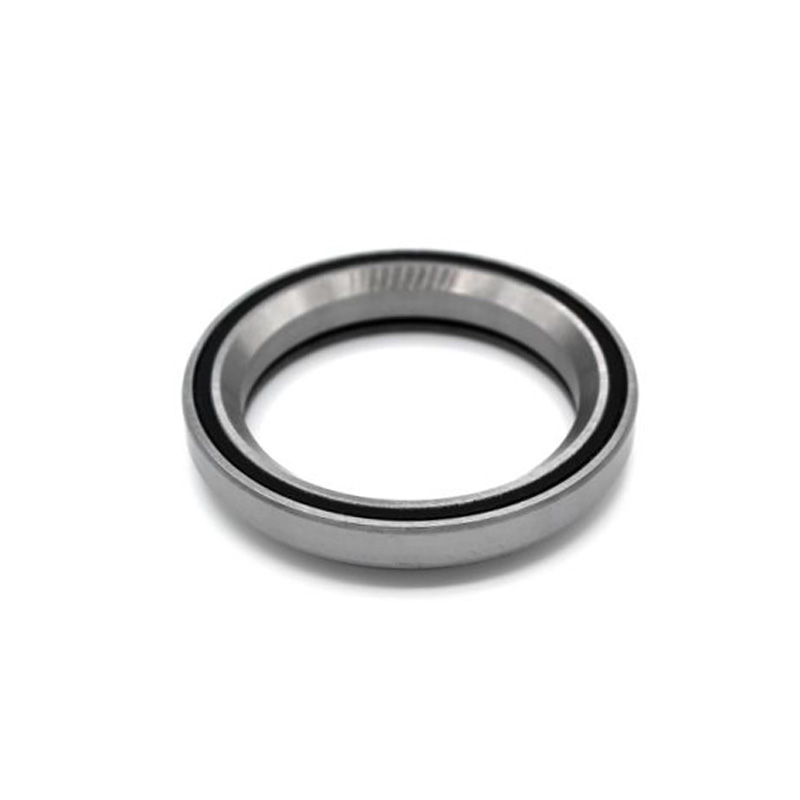

The CCY-1013 (HB-C4) bearing is designed for 1 1/4" headset systems and is suitable for oversized configurations requiring increased stiffness and durability.

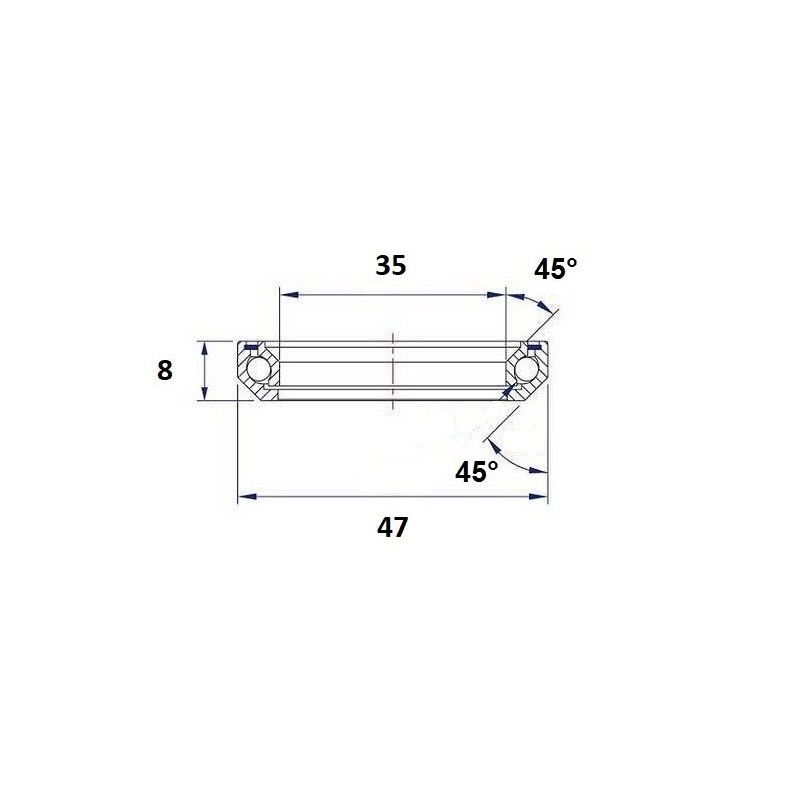

Its dimensions (35 x 47 x 8 mm) and 45/45° contact angle ensure precise fit and stable steering performance.
This size is widely used in modern headset systems and is compatible with many OEM and aftermarket standards, ensuring reliability and long service life.
Specifications
- Type: headset bearing
- Standard: 1 1/4"
- Dimensions: 35 x 47 x 8 mm
- Angle: 45° / 45°
- Seals: 2RS (sealed)
- Material: high-strength steel
- Lubrication: premium grease
- Bearing type: angular contact
Compatibility
- Compatible with 1 1/4" headset systems
- For integrated and semi-integrated oversized headsets
- Suitable for road, MTB, gravel and urban bikes
- Compatible with equivalent aftermarket standards
- Ideal replacement bearing
