Key features
- Angular contact bearing 36° x 36° for precise load handling
- Double sealing for protection against water and contaminants
- Compact design for integrated headset systems
- High rotational precision and smooth operation
- Compatible with 1"1/8 steerer tube standard
Description

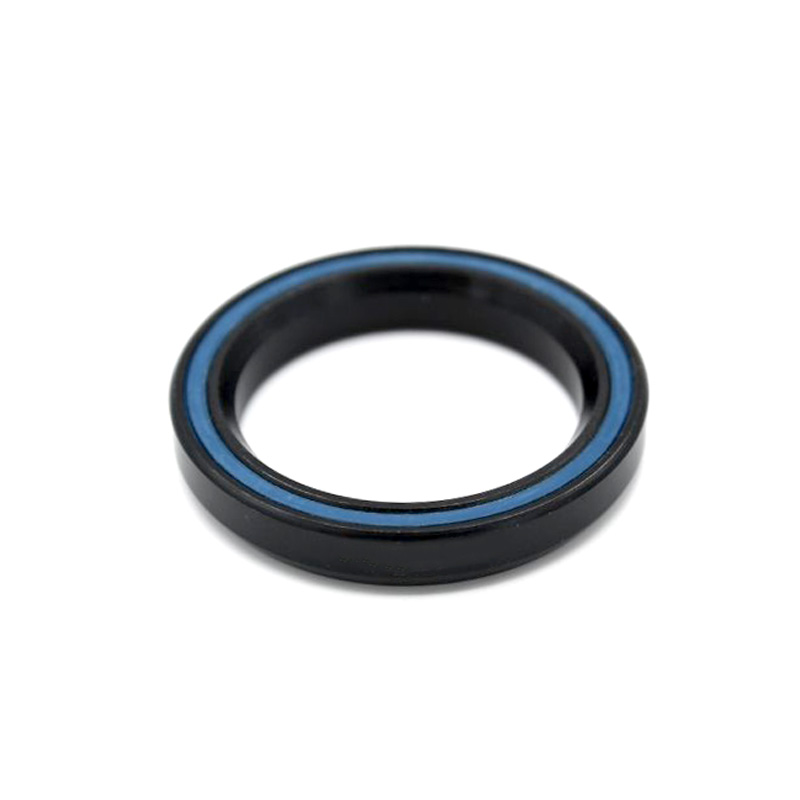

Angular contact headset bearing with 36° x 36° configuration, designed for integrated steering systems. The dimensions 30.15 x 41.5 x 6.5 mm ensure compatibility with common 1"1/8 standards, providing accurate fitting between fork and frame. Double seals on both sides protect internal components from dust and moisture, preserving lubrication and ensuring consistent and reliable performance over time.

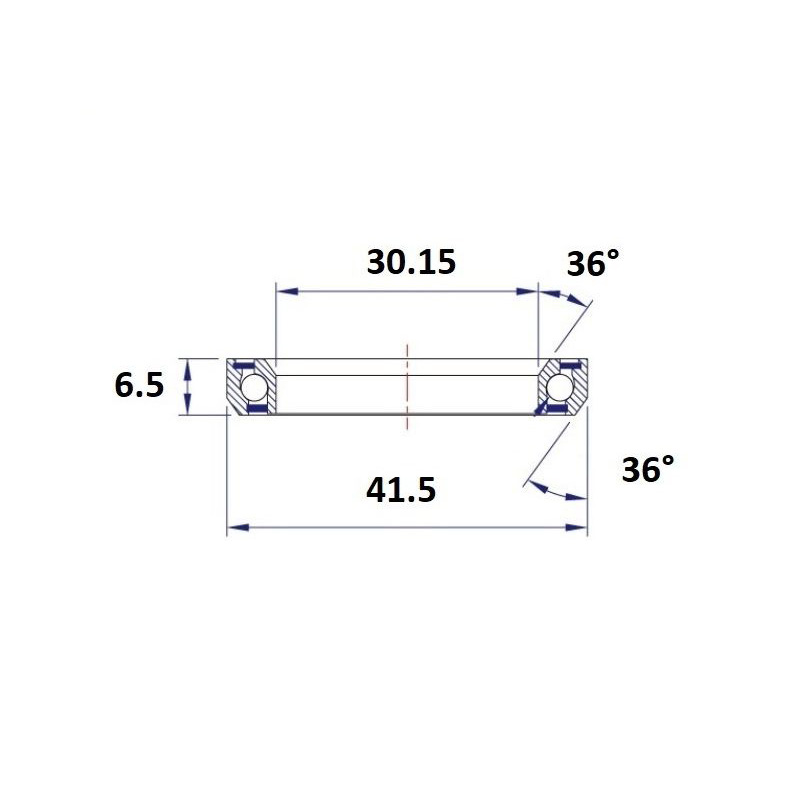

Specifications
- Type: angular contact headset bearing (ACB)
- Inner diameter: 30.15 mm
- Outer diameter: 41.5 mm
- Height: 6.5 mm
- Angle: 36° / 36°
- Steerer compatibility: 1"1/8
- Seals: 2RS on both sides
- Material: steel
- Equivalent references: TH-872, MR043, MR049
Compatibility
- Integrated and semi integrated headset systems 1"1/8
- Systems with 36° x 36° contact angle
