Key features
- Angular contact bearing 36° x 45° for precise load handling
- Double 2RS sealing for protection against water and contaminants
- High precision and smooth rotation
- Compact design for integrated headset systems
- Compatible with 1"1/4 steerer tube
Description

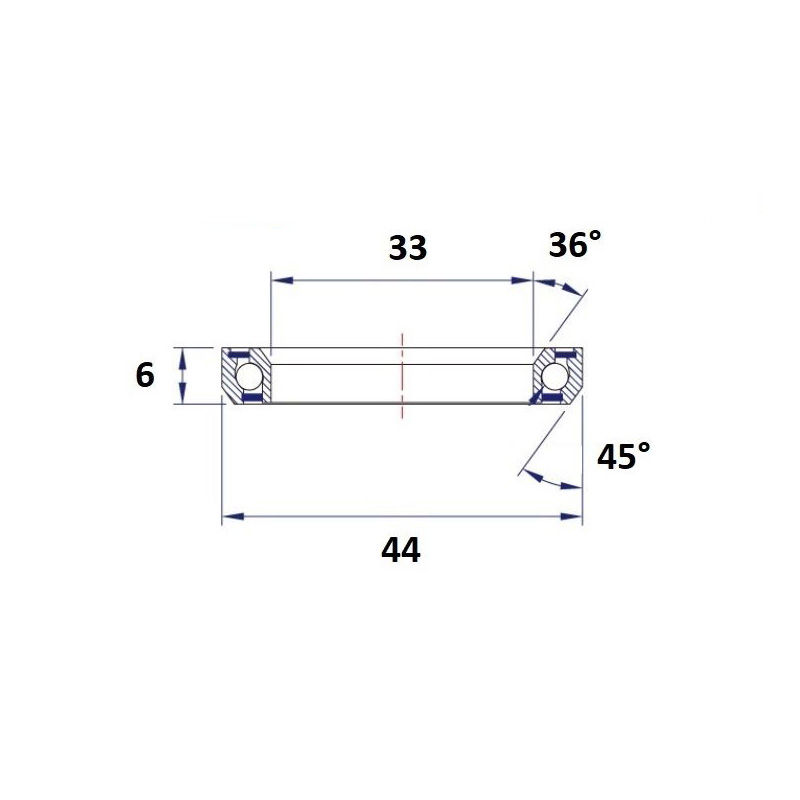

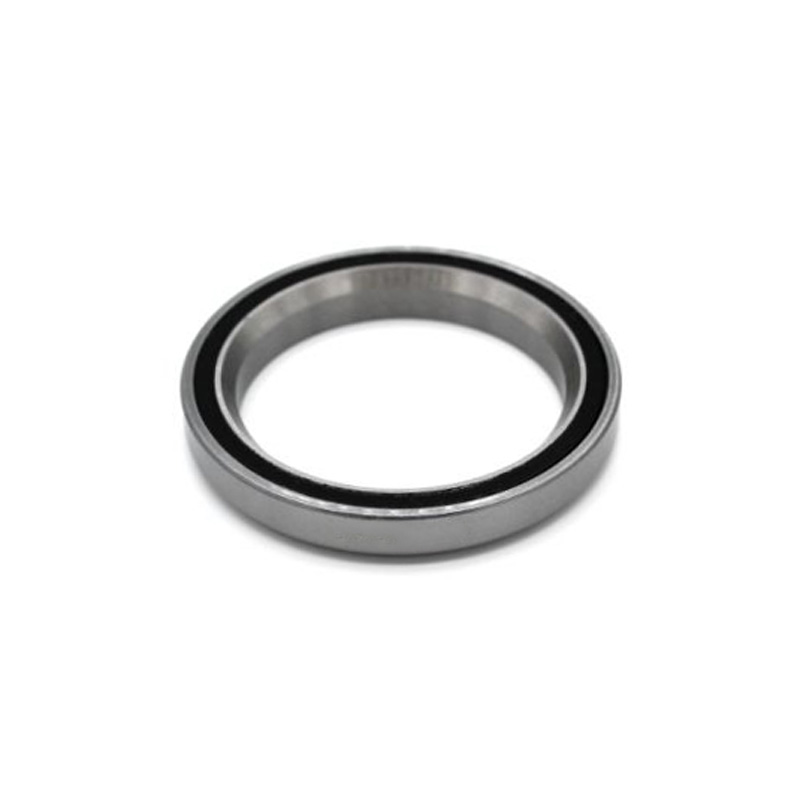

Angular contact headset bearing with 36° x 45° configuration, designed for integrated steering systems. The dimensions 33 x 44 x 6 mm make it suitable for 1"1/4 standards, ensuring accurate interface between fork and frame. Steel construction with ground raceways enables smooth rotation, while seals on both sides retain lubrication and prevent contamination, ensuring long term reliability.
Specifications
- Type: angular contact headset bearing (ACB)
- Inner diameter: 33 mm
- Outer diameter: 44 mm
- Height: 6 mm
- Angle: 36° / 45°
- Steerer compatibility: 1"1/4
- Material: steel
- Seals: 2RS double lip
- Raceways: ground
- Lubrication: high performance grease
- Precision class: ABEC 5
- Equivalent references: ACB3344H6
Compatibility
- Canyon headset systems AI-70 standard
- Canyon models using ACB3344H6 bearings
- Systems with 36° x 45° contact angle
