Key features
- Angular contact bearing 36° x 45° for precise load handling
- Double 2RS sealing for protection against water and contaminants
- High precision and smooth rotation
- Compact design for Canyon integrated headset systems
- Compatible with 1"1/4 steerer tube
Description

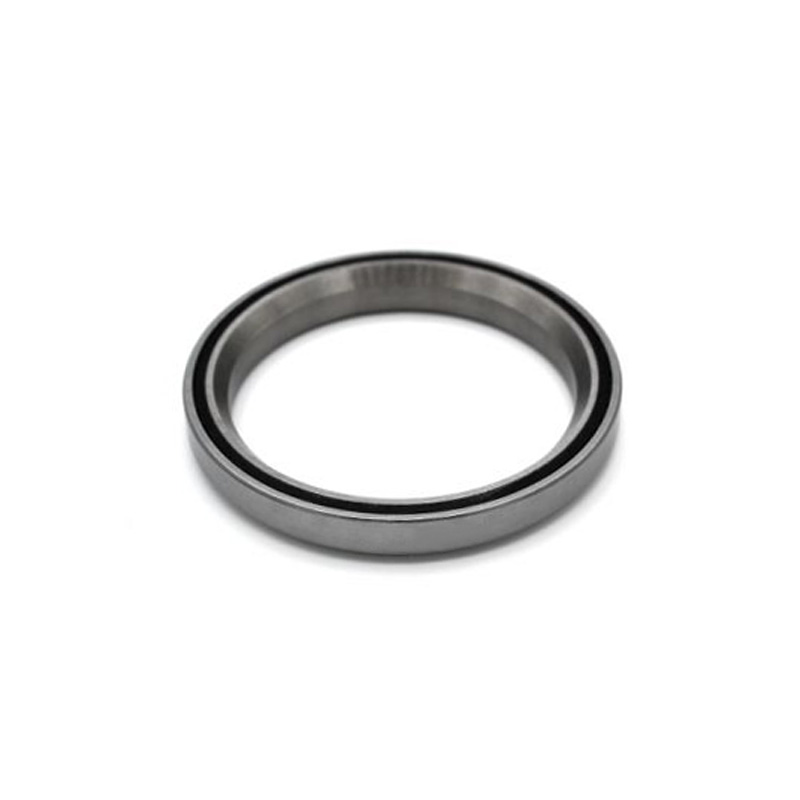

Angular contact headset bearing with 36° x 45° configuration, designed for Canyon integrated steering systems. The dimensions 35 x 44 x 5.5 mm ensure precise fit between fork and frame in 1"1/4 systems. Steel construction with ground raceways provides smooth and consistent rotation, while seals on both sides retain lubrication and prevent contamination, ensuring long term durability.

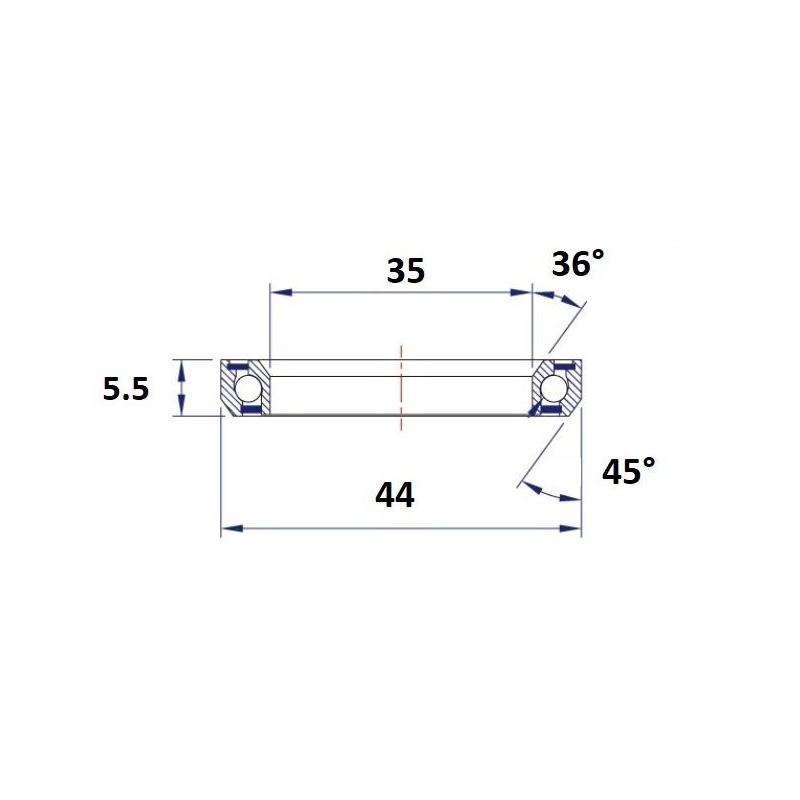

Specifications
- Type: angular contact headset bearing (ACB)
- Inner diameter: 35 mm
- Outer diameter: 44 mm
- Height: 5.5 mm
- Angle: 36° / 45°
- Steerer compatibility: 1"1/4
- Material: steel
- Seals: 2RS double lip
- Raceways: ground
- Lubrication: high performance grease
- Precision class: ABEC 5
- Equivalent references: ACB3544H5.5
Compatibility
- Canyon headset systems AI-70
- Canyon models using ACB3544H5.5 bearings
- Systems with 36° x 45° contact angle
